SP0313.07 : Bơm định lượng - 2DP[M]DA - Depamu
Thông số chính :

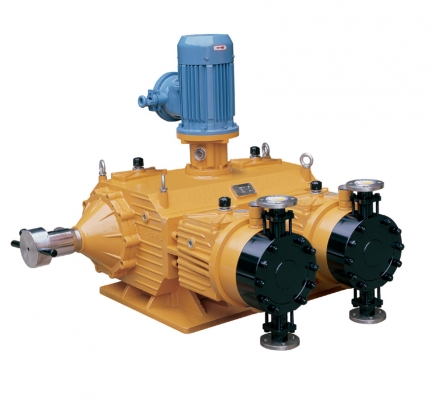

Bơm định lượng - 2DP[M]DA - Depamu - Metering Pump
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ).
Model : 2DP[M]DA Metering Pump
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Option

● The pump head with a hydraulic membrane type, a plunger type and a piston type;
● Automatic emptying, pressure release and oil supply valves in the hydraulic membrane pump, with excellent performance, safety and no leakage;
● One-piece “Oude” worm gear variable transmission mechanism, with low noise and high efficiency;
● Simple, reliable and high-performance sleeve-adjustable eccentric transmission mechanism, with stepless stroke control between 0 and 100%;
● One-way valves on the inlet and the outlet adopt high-grade and anti-corrosive ball valves and linear tightness to effectively guarantee metering precision and fluidit;
● High-performance plungers and fillers and sealing components from Germany, long service life and excellent sealing performance;
● Oil immersion type lubrication, ensuring the long-time and reliable use of variable speed transmission parts;
● The double-head pump and the flow rate adjusting mechanism are mutually independent, a proportioning addition pump can be made, and multiple heads are connected in parallel to 12 heads; and the pulse can be smoothened;
● The flow rate can be adjusted in various modes of artificial mode, electric mode, frequency conversion mode and pneumatic mode.

Type

Flow Rate

L/H

Motor Power

Plunger

Diameter
фmm

4KW

5.5KW

7.5KW

Discharge Pressure Mpa

2DP(M)DA84/60/70/80

84

60

70

80

15

2DP(M)DA150/35/50/65

150

35

50

65

20

2DP(M)DA250/22/30/40

250

22

30

40

25

2DP(M)DA364/15/21/28

364

15

21

28

30

2DP(M)DA494/11/15/21

494

11

15

21

35

2DP(M)DA640/8.5/12/16

640

8.5

12

16

40

2DP(M)DA810/7/9.5/13

810

7

9.5

13

45

2DP(M)DA1010/5.5/7.5/10

1010

5.5

7.5

10

50

2DP(M)DA1224/4.5/6.3/8.5

1224

4.5

6.3

8.5

55

2DP(M)DA1450/3.8/5.3/7.2

1450

3.8

5.3

7.2

60

2DP(M)DA1710/3.3/4.5/6.1

1710

3.3

4.5

6.1

65

2DP(M)DA1980/2.8/3.9/5..3

1980

2.8

3.9

5.3

70

2DP(M)DA2270/2.5/3.4/4.6

2270

2.5

3.4

4.6

75

2DP(M)DA2590/2.1/3/4

2590

2.1

3

4

80

2DP(M)DA2960/1.9/2.6/3.5

2960

1.9

2.6

3.5

85

2DP(M)DA3320/1.7/2.3/3.1

3320

1.7

2.3

3.1

90

2DP(M)DA3700/1.5/2/2.8

3700

1.5

2

2.8

95

2DP(M)DA4100/1.3/1.9/2.5

4100

1.3

1.9

2.5

100

2DP(M)DA5000/1.1/1.5/2

5000

1.1

1.5

2

110

2DP(M)DA5920/0.9/1.3/1.8

5920

0.9

1.3

1.8

120

2DP(M)DA7000/0.8/1/1.5

7000

0.8

1

1.5

130
