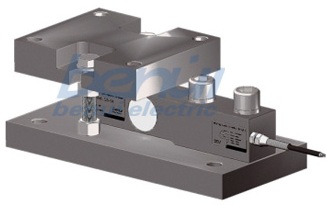

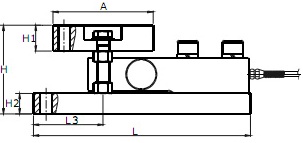

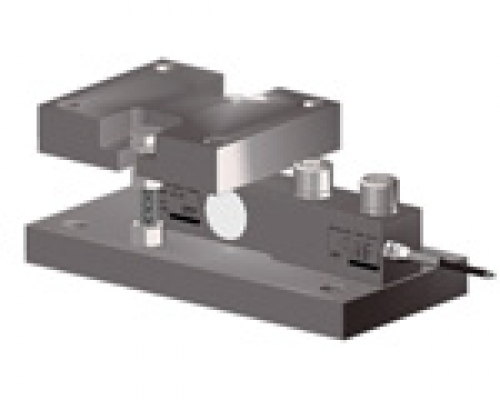

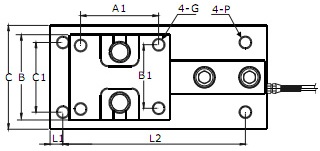

CAP./SIZE

A

A1

B

B1

C

C1

L

L1

L2

L3

H

H1

H2

G

P

0.5,1,2,3t

150

124

128

102

112

80

286

32

226

96

102

28

23

M10

13

5,8t

178

146

152

120

152

102

318

32

257

99

130

38

30

M16

17

10t

184

152

154

122

154

106

360

32

295

105

168

45

45

M20

21

15~25t

220

170

220

170

220

170

400

25

300

115

213

55

55

M24

26

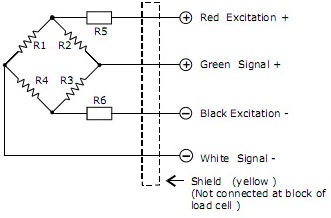

Item Parameter

C3

Unit

Rated load (Emax):

0.5,1,2,3,5,8,10,20

t

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals

 ( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

385±5

Ω(Ohms)

Output resistance(Ro):

351±2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~15

V( DC or AC)

Maximum excitation:

18

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
