Thông số chính :
Cảm biến lực | Cân điện tử | SQB | KELI | BENUI | Single beam loadcell

Cảm biến trọng lượng | Cảm biến lực | Loadcell | Cân điện tử | Bộ chỉ thị số | Đầu cân | Cân băng tải | Cân ô tô | Cân đóng bao | Phụ kiện /.

Thiết kế | Chế tạo thiết bị | Máy móc | Dây chuyền | Thiết bị sấy | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) | SIEMENS ( Đức )
Hãng cung cấp : KELI | ZEMIC | BENUI
Model : SQB
Chất lượng : Bảo hành 18 tháng
 Catalog Video
Execution standard:
GB/T 7551-2008 Certificate
(eqv OIML R60)
Combined error : 0.015%

Sealed to IEC 529:
Protection grade: IP67 or IP68. Protection against total immersion in water for 30 minutes at a pressure corresponding to a 1 m head of water.

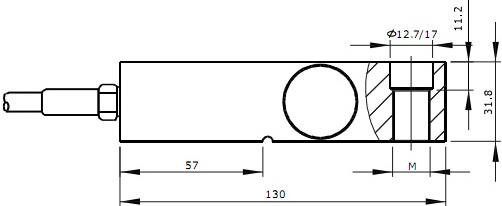

Dimensions

(In mm. 1mm = 0.03937 inches)

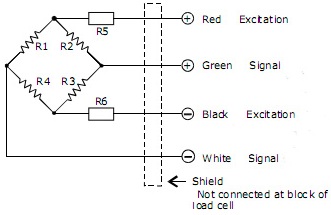

Circuit Diagram:

Electrical Termination
4 Core cable standard lengths:3m.
Diameter: Φ5
Connection:
Refer to the following drawing:

Notice: Do not change the length of cable, or lese, it will effect the sensitivity of loadcell.

Specification

Item Parameter

C2

Unit

Rated load:(Emax)

0.1,0.2,0.5,1,2,3

t

Maximal numbers of load cell verification
Interval(Nlc):

3000

d

Minimum load cell verification intervals
Intervals( Vmin):

0.01

% of rated load

Rated output(Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity
(Tkc):

0.0012

-% of rated output/

Temperature effect on zero balance
(Tk0):

0.0008

-% of rated output/

Zero balance

1.0

-% of rated output

Input resistance(Rlc)

385±5

Ω(Ohms)

Output resistance(Ro)

351±2

Ω(Ohms)

Insulation resistance

≥5000

MΩ (Mega-Ohms)

Safe overload

150

% of rated capability

Ultimate overload

300

% of rated capability

Operating temperature range

-20~+70/-20~+160

/°F

Recommend excitation

8~12

V( DC or AC)

Maximum excitation

18

V( DC or AC)

Material of elastomer

Al oy steel / Stainless steel

Protection class

IP67/IP68
