SP0301.07 : Bơm hút chân không - 2BE1 - EVP
Thông số chính :
Bơm hút chân không - 2BE1 - EVP - Vacuum pump - Dry vacuum pump
Hãng cung cấp : EVP
Model : 2BE1
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Vacuum pump - Dry vacuum pump

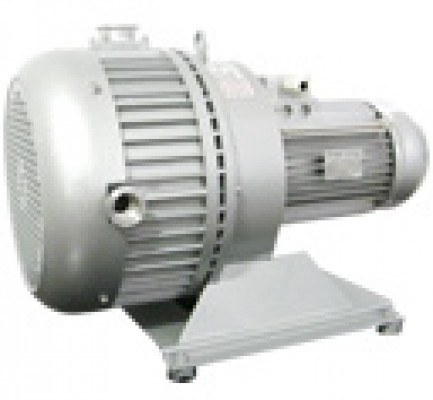

EVP series dry scroll vacuum pump
Based on the advanced technology of vacuum pumps abroad, this dry scroll vacuum pump is researched and developed by our experienced technicians. It is an environmental vacuum pump with reasonable price. This type will be the trends in the future.
Application:
Medical instruments,biologicals, pharmacy, food industry, medical packing, oil vapour recycle,film Preparation,semiconductor,micro-electronics, solar energy, etc.
Characteristics Description:
Environmental , no oil, no water, no pollution, with clean vacuum.
Easy to operate, convenient maintenance.
Low energy consumption.
Advanced in puming water vapor.
The things which it pumps can be recycled.
Compact construction, easy to install and move.
Air cooling.
Less vibration , low noise.
Wider working vacuum,can continue working from the ultimate vacuum to the high atmospheric pressure
Spare parts:sealing elements,shaft seal,bearing,lubricating grease
Technical Datas :

TYPE

Pumping speed

Ultimate Pressure (torr)

Power
(Kw)

Rotational
speed (rpm)

m3/h

l/s

EVP010

10

2.8

0.02

0.37

1400

EVP020

20

6

0.02

0.75

1400

EVP040

40

11

0.02

1.1

1400

EVP080

80

22

0.02

2.2

1400

TYPE

Outlet Diam
(inch)

Weight
(kg)

Noise
dB (A)

Dimension
(cm)

EVP010

KF25/G3/4’

30

62

46X28X33

EVP020

KF25/G3/4’

33

65

48X28X33

EVP040

KF25/G3/4’

52

66

56X34X30

EVP080

KF25/G3/4’

68

68

68X38X43
