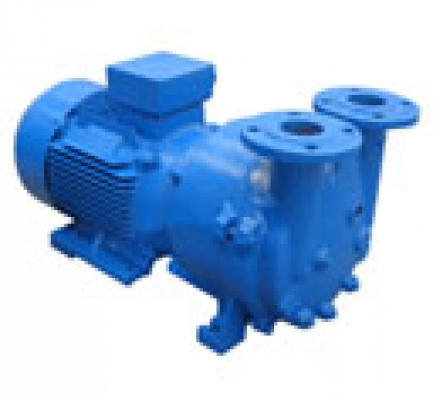

SP0301.03 : Bơm hút chân không - 2BV - EVP
Thông số chính :
Bơm hút chân không - 2BV - EVP - Vacuum pump - Molecular pump
Hãng cung cấp : EVP
Model : 2BV
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Vacuum pump -Liquid Ring Vacuum Pump
2BV series Liquid ring vacuum pump and compressor
2BV series water ring vacuum pump is suitable for pumping gas and vapor. Its suction pressure can reach 33mbar (absolute pressure) (97% vacuum degree). When the transformer oil is used as working liquid (it is called oil ring vacuum pump), the suction pressure can reach 6.7mbar (absolute pressure) (99.3% vacuum degree), so it can fully replace reciprocating vacuum pump. When the vacuum pump works for a long time under the suction pressure near to the ultimate vacuum, it needs to connect with cavitations protection tube in order to eliminate screaming and protect the pump. As the compressor, the ultimate pressure is 0.26MPa (absolute pressure). 2BV series water ring vacuum pump and compressor as the new generation of energy saving products, its outstanding performance and advantages will replace SK, 2SK series water ring vacuum pump, W, WY, WL series reciprocating vacuum pump.2BV2-Ex, 2BV6 series water ring vacuum pump/ compressor are mainly used for pumping the explosive gas or work in the various inflammable and explosive environments, and their performance parameter are the same as 2BV2, 2BV5 series.
Main features:
1, The direct-coupled design is easy installation and can save space.
2, The bearings are all the Japanese NSK.
3, The standard configuration uses the John Crane mechanical seal which can eliminate leakage and easy to maintain.
4,The pump has the cavitation protection port, when it works under the ultimate pressure, the cavitation protection port opens (or connects with the separator) in the case of ensure maximum suction effect to eliminate the noise of cavitation and protect the pump
5, 2BV whole series are all use the aluminum bronze impeller with high strength and raise its corrosion resistance and durability. If the liquid flows parts adopt stainless steel, the pump can work in the more hard condition.
6, Special flexible the exhaust port can avoid over-pressure and ensure the best efficiency within the range of its performance.
7, All motors are all adopted Y2 series products. The protective grade is IP54 or IP55 (common is IP44), the insulation grades is F(common is B).
8, 2BV series water ring vacuum pump can bring soft seal parts are all PTFE which can last its workable life under the more harsh environments.
9, Stable Operation and noise can low to 62 decibel

Model

Pumping Speed

Ultimate vacuum mbar(MPa)

Motor power kW



m3/min

m3/h

33mbar(-0.098MPa)



2BV2 060

0.45

27

0.81

2BV2 061

0.86

52

1.45

2BV2 070

1.33

80

2.35

2BV2 071

1.83

110

3.85

2BV2 060-Ex

0.45

27

1.1

2BV2 061-Ex

0.86

52

1.5

2BV2 070-Ex

1.33

80

3

2BV2 071-Ex

1.83

110

4

2BV5 110

2.75

165

4

2BV5 111

3.83

230

5.5

2BV5 121

4.66

280

7.5

2BV5 131

6.66

400

11

2BV5 161

8.33

500

15

2BV6 110

2.75

165

4

2BV6 111

3.83

230

5.5

2BV6 121

4.66

280

7.5

2BV6 131

6.66

400

11

2BV6 161

8.33

500

15



Model

Pump speed r.p.m

Liquid flowrate L/min

Noise dB(A)

Weight kg











2BV2 060

2840

2

62

34

2BV2 061

2840

2

65

38

2BV2 070

2860

2.5

66

59

2BV2 071

2880

4.2

72

68

2BV2 060-Ex

2840

2

62

39

2BV2 061-Ex

2840

2

65

45

2BV2 070-Ex

2860

2.5

66

66

2BV2 071-Ex

2880

4.2

72

79

2BV5 110

1440

6.7

63

109

2BV5 111

1440

8.3

68

128

2BV5 121

1440

10

69

160

2BV5 131

1460

15

73

240

2BV5 161

970

20

74

360

2BV6 110

1440

6.7

63

148

2BV6 111

1440

8.3

68

196

2BV6 121

1440

10

69

220

2BV6 131

1460

15

73

314

2BV6 161

970

20

74

426
