SP0601.08 : PT124B-219 | Cảm biến áp suất | 4-20mA | ZHYQ
Thông số chính :
PT124B-219 | Cảm biến áp suất | 4-20mA | ZHYQ | Pressure sensor | Pressure Transmitter

Non-corrosive pressure transmitter
Range : 0……10mbar~0……400bar
Accuracy : 0.1%FS, 0.25%FS
Output : 4~20 mA ;0~5V;0.5~4.5V


Thiết kế | Chế tạo thiết bị | Máy móc | Dây chuyền | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) | SIEMENS ( Đức )
Hãng cung cấp : ZHYQ
Model : PT124B -219
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Features :

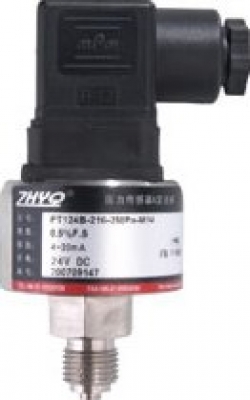

PT124B - 219 has been designed for all fields of industrial pressure measurement. With IP65 Protection and 316 L seal construction, strong impact resistance, good linearity, long-term stability and repeatability, wide range temperature compensation, corrosion resistance, etc. Typical applications are in the fields of shipping industry, Defense industry, scientific research, Space industry, Petroleum, Chemical industry, Electric power, Ocean and other fields.

Application :
Mechanical Engineering Industry | Hydraulic and level measurement | Mechanical Engineering Industry | Mechanical Engineering Industry | Hydraulic and level measurement | Gas tank pressure monitoring | Industrial test and control | General industrial applications

Specifications :

Non-corrosive pressure transmitter

Ranges

0……10mbar~0……400bar

Overload pressure 150%FS

Combined accuracy

0.5%FS 1%FS

Output signal

4~20 mA ;0~5V;0.5~4.5V

Excitation

24 ( 12~36VDC )

Working Temp

- 40 - 125C

Electric Connection Hirschman, direct down-lead, Bendix connector and etc.

Standard Wetted Parts

TiN coated  15-5PH SST;Inconel 718

Process Connection

G1/4; 1/4NPT; G1/8;M14×1.5; M20×1.5, Special design
