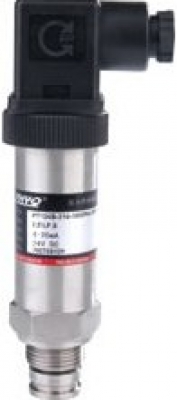

SP0601.06 : PT124B-214 | Cảm biến áp suất | 4-20mA | ZHYQ
Thông số chính :
PT124B-214 | Cảm biến áp suất | 4-20mA | ZHYQ | Pressure sensor | Pressure Transmitter :

Flush diaphragm pressure transmitter
Range : 0……1 ~ 0……700bar
Accuracy : 0.1%FS, 0.25%FS ;0.5%FS
Output : 4~20 mA , 0~5V; 0.5~4.5V
Power supply : 24(12~36V)DC

CTCP GIẢI PHÁP CÔNG NGHIỆP | Chế tạo thiết bị | Máy móc | Dây chuyền | Thiết bị sấy | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) SIEMENS ( Đức )
Hãng cung cấp : ZHYQ
Model : PT124B-214
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Features :
PT124B-214 with flush diaphragm is particularly suitable for the measurement of viscous fluids or media containing particulates that may clog the pressure connection of standard industrial transmitters. All wetted parts are made of stainless steel and are hermetically welded.

Application :
Mechanical Engineering Industry | Hydraulic and level measurement | Mechanical Engineering Industry | Mechanical Engineering Industry
Hydraulic and level measurement | Gas tank pressure monitoring | Industrial test and control | General industrial applicastions

Specifications :

Flush diaphragm pressure transmitter

Ranges

0……1 ~ 0……700bar

Overload pressure

150%FS

Combined accuracy

0.5%FS 1%FS

Output signal

4~20 mA , 0~5V; 0.5~4.5V

Excitation

24Vdc (12~36Vdc)

Working Temp

-40  - 80C

Electric Connection

Hirschman, direct down-lead, Bendix connector and etc.

Standard Wetted Parts

TiN coated  15-5PH SST;Inconel 718

Process Connection

G1/4; 1/4NPT; G1/8;M14×1.5; M20×1.5, Special design
