SP2102.04 : Tank Bottom Diaphragm Valves - DONJOY
Thông số chính :
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ).
Hãng cung cấp : DONJOY
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

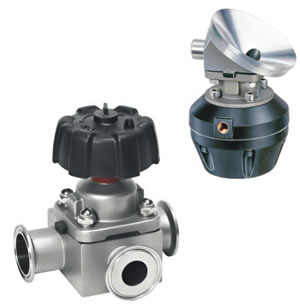

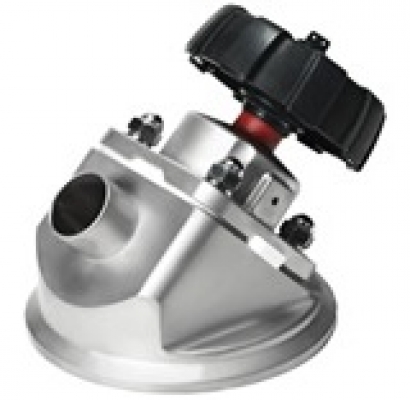

Tank Bottom Diaphragm Valve is used in biology pharmacy and food processing industries. Installed at the tank bottom.It is a highly hygenic,non-sustained diaphgram valve,mainly used for discharging medium from tanks,and no resort at the chamber

Specifications:
manual/air actuated
 actuator can be configured with control top and sensors.So as to realize intellegently telecontrol
size: 3/4"to 3",DN20 to DN80
stainless steel grade: ASTM T304/316L
Inside finishe: Ra0.4um
outside finish: satin polish/bright finish
connections :clamp.weld,male
Diaphragm: PEFE/EPDM,FPM,EPDM,Silicon
certifications 3A/54-02/1580
PED/97/23/EC,FDA.177.2600
