Series/CAD

Applicable compressor

Air flow capacity L/min (ANR)

HAA

7.5 to 37 kW

1000 to 5700

Features

• Can cool high temperature compressed air from compressors down to 40ºC or less and efficiently remove moisture from the air.
• Cooling equipment is not required for this air cooled type.
• Maintenance is easy and the running cost is reasonable since this is free from concerns such as water supply cut-off or freezing.

Series/CAD

Applicable compressor

Air flow capacity L/min (ANR)

HAW

2.2 to 110 kW

300 to 18000

Features

• Can cool high temperature compressed air from compressors down to 40ºC or less and efficiently remove moisture from the air.
• Stable operation is possible even in an environment with a hightemperature, high moisture and hea

Series/CAD

Port size

Capacity (L)

AT

1/2 to 4^B flange

100 to 3000

Features

• Accumulates the compressed air from compressors, also prevents it from being pulsated, and cools it.

Series/CAD

Port size

Tank capacity (L)

VBAT

3/8,1/2,3/4

5,10,20,38

Features

• Compact air tank that can be directly connected with a regulator.
• Can be used as an independent tank.
• With a safety valve port. (Optional)

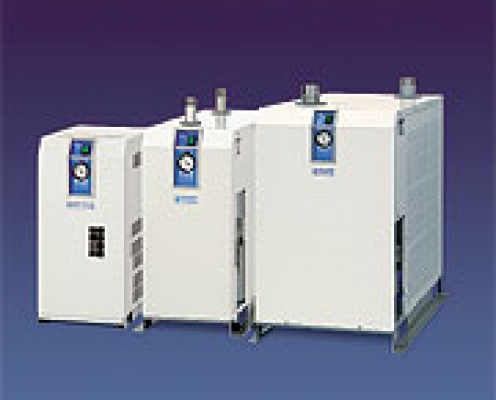

Series/CAD

Applicable compressor

Air flow capacity m³/min (ANR)

50 Hz

60 Hz

IDF1E to 75E

0.75 to 75 kW

0.10 to 11.0

0.12 to 12.4

IDF120D to 240D

120 to 240 kW

20.0 to 43.0

23.0 to 50.0

IDF370B

370 kW

54.0

65.0

IDU3E to 75E

2.2 to 75 kW

0.32 to 11.0

0.37 to 12.5

Features

• Increases the air flow rate by a maximum of 40%*. (SMC comparison)
• Reduces the power consumption by a maximum of 40%*. (SMC comparison)
• Refrigerant:
     R134a (HFC) [IDF1E to 15E/IDU3E to 15E]
     R407C (HFC) [IDF22E to 240D/IDU22E to 75E]
• Improved corrosion resistance with the use of a stainless steel, plate type heat changer. (IDF4E to 75E/IDU3E to 75E)

Series/CAD

Applicable compressor

Air flow capacity m³/min (ANR)

50 Hz

60 Hz

IDF100F

100kW

16

18.8

IDF120F

125kW

20.1

23.7

IDF150F

150kW

25

30

Features

• Tolerant of high temperature environment (Ambient temperature 45℃ , Inlet air temperature 60℃)
• Exhaust heat reduced by 25%
• Air-cooled type and water-cooled type are available.
• Stainless steel heat exchanger
• Refrigerant R407C (HFC)

Series/CAD

Air flow capacity m³/h (ANR)

Applicable
standard

Outlet air pressure dew point

3ºC

7ºC

10ºC

IDFA3E to 75E

12 to 660

15 to 720

17 to 822

CE

Features

• EC Directive compliant (with CE marking)
• Power supply voltage: Single-phase 230 VAC (50 Hz)
• Refrigerant: R134a (HFC), R407C (HFC); Coefficient of destruction for ozone is zero.
• Improved corrosion resistance with the use of stainless steel, plate type heat changer (IDFA4E to 75E)

Series/CAD

Outlet air
pressure
dew point

Air flow capacity
m³/h (ANR)

Applicable
standard

For use in Asia
and Oceania

IDFA100F-38

10℃

960

CE

IDFA125F-38

1210

IDFA150F-38

1500

For use
in Europe

IDFA100F-40

3℃

860

IDFA125F-40

1100

IDFA150F-40

1340

Features

• Tolerant of high temperature environment. (Ambient temperature 45 ℃ at max., Inlet air temperature 60℃ at max.)
• Exhaust heat reduced by 25% at max.
• Power supply voltage : Three-phase 380 VAC (For Asia and Oceania), Three-phase 400 VAC (For Europe)
• Employs a heat exchanger made of high corrosion-resistant stainless steel.
• Refrigerant R407C (HFC)

Series/CAD

Air flow capacity m³/h (ANR)

Applicable
standard

Outlet air pressure dew point

37ºF (2.8ºC )

45ºF (7.2ºC )

50ºF (10ºC )

IDFB3E to 75E

10 (17) to 300 (510)

11 (19) to 353 (600)

12 (20) to 406 (690)

UL, CSA

Features

• UL certified product
• Power supply voltage: Single-phase 115 VAC (60 Hz), 230 VAC (60 Hz), three-phase 460 VAC (60Hz)
• Refrigerant: R134a (HFC), R407C (HFC), Coefficient of destruction for ozone is zero.
• Improved corrosion resistance with the use of stainless steel, plate type heat changer (IDFB4E to 75E)

Series/CAD

Outlet flow L/min (ANR)

Inlet flow L/min (ANR)

ID

80 to 780

100 to 975

Features

• Supply dry air with a low dew point below -30ºC.
• Compact and lightweight without a heater or an electric control board.
• Possible to check the outlet dew point with the indicator. (Selfregenerative style allows for easy maintenance.)

Series/CAD

Outlet flow L/min (ANR)

Standard dew point (ºC )

IDG1 to 100

10 to 1000

-20

IDG3H to 100H

25 to 1000

-15

IDG30L to 100L

75 to 300

-40

IDG60S to 100S

50 to 150

-60

Features

• Non-freon
• Power supply not required
• Compatible with low dew points.
• No vibration or heat discharge.
• With a dew point indicator.

Series

O.D./I.D. (mm)

Effective length (mm)

Applicable fittings

IDK02

2/1.2

100
200

KQ2
KJ

IDK04

4/2.5

IDK06

6/4

Features

• Prevents condensation in piping for small cylinders/air grippers.
• Diffuses water vapor in the piping to the outside.
• All you have to do is install the moisture control tube. Additional power supply and works are not necessary.
