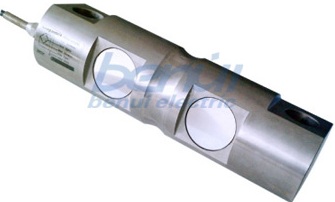

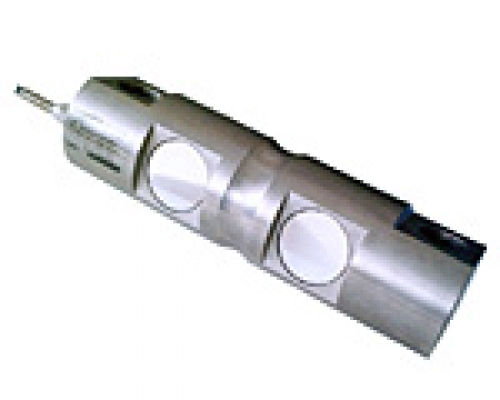

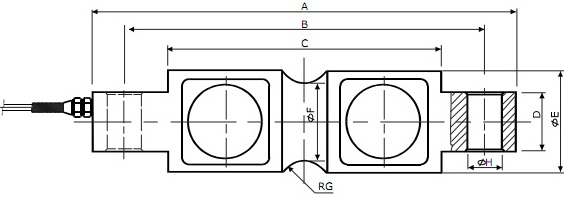

CAP./SIZE`

A

B

C

D

E

F

G

H

5~10klb

206.3

174.8

133.1

28.5

43.2

37.6

12.7

16.8

20klb

206.3

174.8

133.1

28.5

49.3

37.6

12.7

16.8

30~60klb

260.4

215.9

164.8

60.2

76.2

69.3

25.4

26.9

100klb

285.8

241.3

190.2

63.5

95.3

82.3

25.4

26.9

150klb

285.8

241.3

190.2

71.1

99.1

92.5

38.1

26.9

200klb

409.0

330.2

254.0

116.8

136.7

131.1

50.8

39.6

Item Parameter

C3

Unit

Rated load (Emax):

5,10,20,30,60,100,150,200

klbs

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals

( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

775±5

Ω(Ohms)

Output resistance(Ro):

702±2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~15

V( DC or AC)

Maximum excitation:

24

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
