Operating Principle
Under the control of actuator, PTFE bellow or metal bellow valve plug with special sealing structure extends or contracts. This makes the valve open or closed under the aseptic working conditions. Due to the special material, the valve's tightness will not be affected even if after many times of SIP sterilization. Smooth corrugated surface makes it easy to conduct SIP sterilization, and special sealing structure avoids sanitary dead corners.
Technical Data
Metal material |
Product wetted |
316L (DIN-1.4404) |
Non-product wetted |
304 (DIN-1.4301) |
|
We can provide EN 10204 3.1B certificate for all metal materials. |
||
Seal material |
Standard |
PTFE bellow |
Options |
316L / PTFE bellow |
|
All seal materials comply with FDA 177.2600. |
||
Temperature |
Continuous working temperature |
-20°C ~ +135°C (PTFE) |
Sterilization temperature |
150°C (Max 60min) |
|
Pressure |
Working pressure |
0~5bar |
Control air pressure |
5~8bar |
|
Surface treatment |
Internal surface |
Ra≤0.6µm |
External surface |
Ra≤1.6µm |
|
Connection |
Connection standards |
Welding end: DIN 11866 series 1 |
Welding end: DIN 11866 series 3 |
||
Connection methods: welding, thread, clamp, flange |
||
Options |
Smart controller |
24V DC |
solenoid valve (1) |
||
Position sensor |
24V DC |
|
NPN/PNP position sensor (1 or 2) |

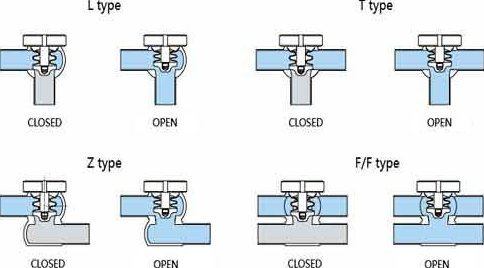

Body Configurations
